Floorplan - 2016 Grand Design Imagine 3150BH
1 of 1
+1-
36ft long
-
7,425 lbs
-
Sleeps 8
-
2 slides
-
BunkhouseOutdoor Kitchen

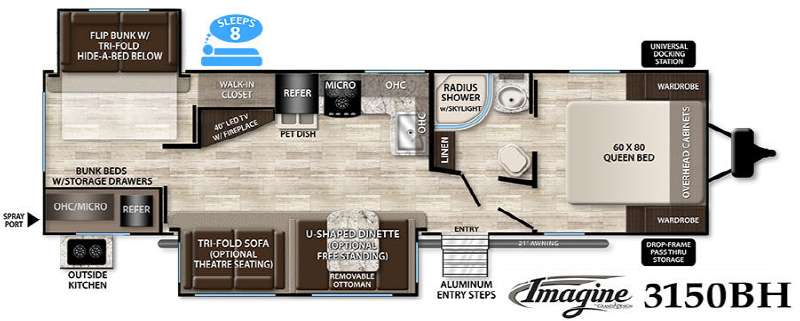

3150BH Floorplan
3150BH Floorplan
Specifications
Specifications
| Sleeps | 8 | Slides | 2 |
| Length | 35 ft 11 in | Ext Height | 11 ft 2 in |
| Hitch Weight | 778 lbs | GVWR | 8995 lbs |
| Dry Weight | 7425 lbs | Fresh Water Capacity | 52 gals |
| Grey Water Capacity | 78 gals | Black Water Capacity | 39 gals |
| Tire Size | 15" | Furnace BTU | 35000 btu |
| VIN | 573TE3621G3401132 |
Description
Description
Take the whole gang along in this Grand Design Imagine bunkhouse travel trailer featuring double slides, plus an outdoor kitchen for the chef in the bunch to enjoy!
Step inside model 3150BH and notice the convenient location of the complete bath almost directly opposite the entrance. Here you will find a radius shower, toilet, linen cabinet, and vanity with sink. A second sliding door leads into the front private master bedroom.
The front master can also be accessed using the door at the head of the hall. Inside a queen bed providing a comfortable night's sleep, dual bedside wardrobes, and overhead cabinets for more storage space.
To the left of the entry door find a spacious combined kitchen and living area. A u-shaped dinette or optional free standing dinette is just inside the door. There is also a removable ottoman that can be stored beneath the table when not in use. Within the slide you will also find a tri-fold sofa or optional theater seating, the choice is yours. Opposite a 40" LED TV with fireplace will make spending down time inside totally enjoyable.
The kitchen is along the road side opposite the dinette and features an L-shaped counter including a single bowl sink, a three burner range with overhead microwave oven, and a refrigerator for your perishables that features a slide out pet dish beneath.
The very rear of this Grand Design Imagine trailer features a private bunkhouse with a sliding pocket door. Inside find a slide out tri-fold hide-a-bed beneath a flip up bunk along the road side, and a bunk bed opposite with storage drawers below along the curb side wall.
On the outside the chef in the family will enjoy cooking at the outdoor kitchen provided. Here a two burner cook-top, refrigerator, microwave oven, and storage will make it easy to create camp favorites right outside.
There is also a drop frame pass-through storage up front and a universal docking station, triple aluminum steps, and so much more!
Step inside model 3150BH and notice the convenient location of the complete bath almost directly opposite the entrance. Here you will find a radius shower, toilet, linen cabinet, and vanity with sink. A second sliding door leads into the front private master bedroom.
The front master can also be accessed using the door at the head of the hall. Inside a queen bed providing a comfortable night's sleep, dual bedside wardrobes, and overhead cabinets for more storage space.
To the left of the entry door find a spacious combined kitchen and living area. A u-shaped dinette or optional free standing dinette is just inside the door. There is also a removable ottoman that can be stored beneath the table when not in use. Within the slide you will also find a tri-fold sofa or optional theater seating, the choice is yours. Opposite a 40" LED TV with fireplace will make spending down time inside totally enjoyable.
The kitchen is along the road side opposite the dinette and features an L-shaped counter including a single bowl sink, a three burner range with overhead microwave oven, and a refrigerator for your perishables that features a slide out pet dish beneath.
The very rear of this Grand Design Imagine trailer features a private bunkhouse with a sliding pocket door. Inside find a slide out tri-fold hide-a-bed beneath a flip up bunk along the road side, and a bunk bed opposite with storage drawers below along the curb side wall.
On the outside the chef in the family will enjoy cooking at the outdoor kitchen provided. Here a two burner cook-top, refrigerator, microwave oven, and storage will make it easy to create camp favorites right outside.
There is also a drop frame pass-through storage up front and a universal docking station, triple aluminum steps, and so much more!
Features
Features
Standard Features (2016)
Exterior
- 15" Aluminum Wheels & Tires (Forced Option)
- Power Tongue Jack (Forced Option)
- Solar Power Inlet
- Backup Camera Prep
- Black Tank Flush
- 80% Tint Radius Safety Glass Windows
- 20# LP Bottles (2)
- 28" Radius Entry Door
- Exterior Speakers
- High Capacity Water Pump
- Battery Kill Switch (Pass Thru)
Interior
- Solid Hardwood Drawer Fronts
- Frosted Glass Cabinet Door Inserts (Kitchen Upper)
- Solid Core Cabinet Stiles
- Pre-drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Large Panoramic Windows
- Upgraded Leather Furniture
Construction
- Gel Coated Fiberglass Exterior
- One-Piece Roof Membrane with 12-Year Warranty
- Easy Access Low Point Drain Valves
- Insulated Storage Doors
- Magnetic Storage and Entry Door Latches
- Laminated Aluminum Framed Rear Wall (R-7)
- Laminated Aluminum Framed Side Walls (R-7)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms
- Laminated Aluminum Framed Main Floor (R-11)
- 5" Radius Wood Framed Roof (R-14)
Kitchen
- Hi Rise Faucet w/ Pullout Sprayer
- Non-Porous Counter-tops
- Stainless Steel Microwave
- Stainless Steel 3-Burner Range w/Oven
- Double Door Refrigerator
Bathroom
- 30"x36" Residential Walk-In Shower (Floor Plan Specific)
- Skylight Over Shower
- Power Vent Fan
- AC Vents
- Medicine Cabinet w/Mirror
Bedroom
- Master Suite with 60"x80" Bed
- 36 x 74 Solid Bedroom Door (Master Suite)
- Oversized Under bed Storage
- Residential Bedspread
- TV & Cable Prep
Larger Than Life Package (Mandatory)
- Drop Frame Front Pass Thru Storage
- Aluminum "Tread Lite" Entry Steps
- Stainless Steel Appliances
- Walk on Roof
- Residential Cabinetry
- Exclusive Universal Docking Station
- Quick Recovery Water Heater
- Black Tank Flush
- Convertible Dinette w/Portable Ottoman
- Residential Storage Sofa
- Spare Tire & Carrier
- D-Rated Radial Tires
- Diamond Plate Front Rock Guard
- "Pet Stop" Pullout Food Drawer
- Radius Interior Ceiling
Power Package (Mandatory)
- Electric Awning w/LED Light
- LED Interior Lighting
- Motion Sensor Pass Through Lighting (LED)
- Motion Sensor Entry Lighting (LED)
- Bluetooth Stereo
- 30 AMP Service
- High Definition LED Television
- Detachable Marine Grade Power Cord w/LED Light
- 13.5k Ducted Main AC
Extended Season Camping Package (Mandatory)
- 35k BTU High Capacity Furnace
- Heated and Enclosed Underbelly with Suspended Tanks
- Designated 2" Heat Duct to Bathroom
- High Density Roof Insulation with Attic Vent
- Moisture Barrier Floor Enclosure
- Residential (Ductless) Heating System Throughout
Options
- Fiberglass Front Cap (Mandatory)
- 15k Ducted Main A/C (IPO 13.5k)(Mandatory)
- Theatre Seating (Forced on 2950RL)
- 15" Aluminum Wheels (Mandatory)
- 50 Amp Service (Wired and Framed For 2nd A/C (Forced-2950RL & 3150)
- Free Standing Table & Chairs (N/A 2150RB)
- Fireplace (Forced on 2950RL & 3150BH Only)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
